QTEE II C Gas Stove (Curved)
QTEE II C Gas Stove (Curved)
Click Here: EMAIL FOR PRICING
Just submit your Name, Email, and Shipping address and we will get back to you with a custom price quote/shipping info.

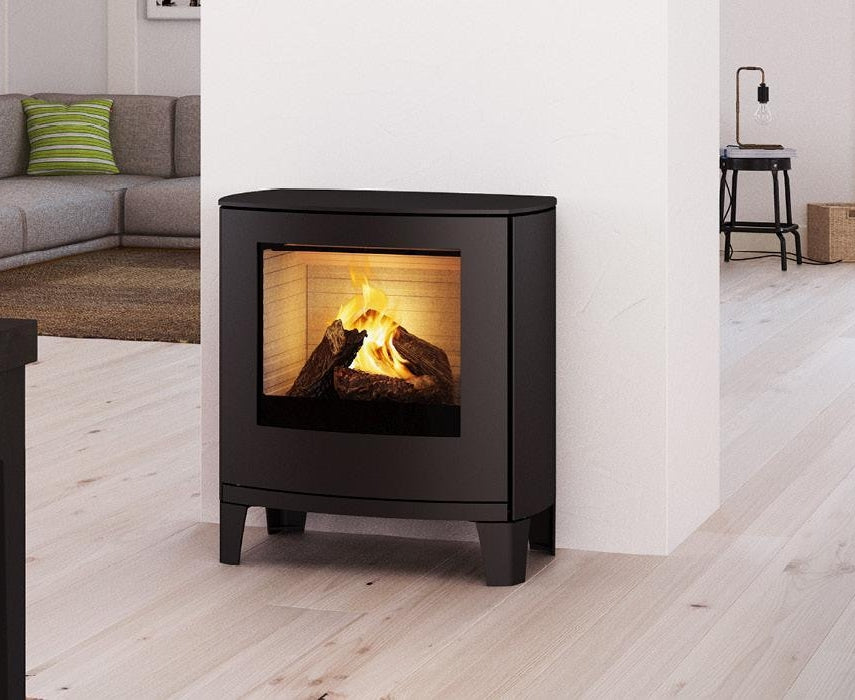

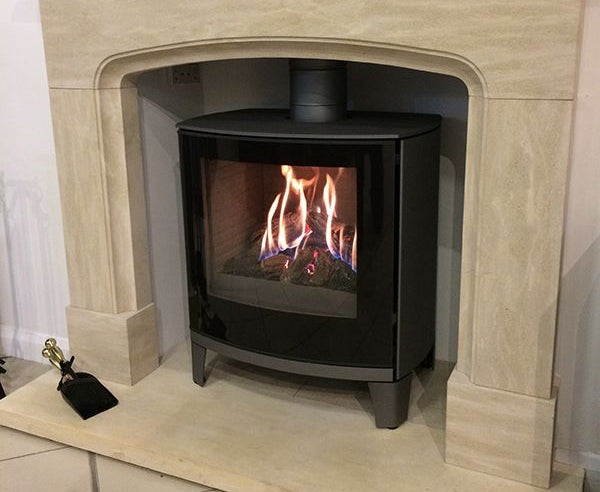

RAIS Q-Tee 2 C GAS beautifully rounded corners and an expansive curved glass , or steel frame door. Choose between several base and leg options, and door designs to add a personal touch. Fuel options: LP, or natural gas
High Base height = 18" Low Base height = 15" Tall legs height = 6.5" Short Legs height = 4.9" legs
Specifications:
Heat BTu output - 31 kBTU
Heat range (min-max) 8-31 kBTU
Heating capacity (25-68 degrees F) 1000 sq. ft
Efficiency 75+%
Dimensions (W-D-H)
Stove Exterior 26 W - 19.4 D - 23.5 H
Firebox Interior 17 1/2 - 9 3/5 - 10 1/5 "
Pipe Diameter 4 x 6 5/8th
Distance from center of top exit to the back edge of the top plate 7"
Distance from floor to center of top exit 23.5"
Distance from floor to center of rear exit 18.1
Distance to Flammable Material
Distance to combustible side wall 15"
Distance to combustible back wall 2"
Corner Clearance to Combustible 13"
Weight
Stove 382 lb
Features Standard Option
Color: Black - -
Glass Door - X
Steel Door with Glass X -
Top or Rear Smoke Exit X -
Top Smoke Exit - X
Air-Cooled Handle - -
