QTEE II C Wood Stove (Curved)

QTEE II C Wood Stove (Curved)

Click Here: EMAIL FOR PRICING

Just submit your Name, Email, and Shipping address and we will get back to you with a custom price quote/shipping info.



The Q-Tee II now has a new curve appeal!   The Q-Tee II C  has rounded sides and curved glass door that rethinks the design of this beautifully contoured stove series.

Equipped with "cabinet-style" door  makes opening and closing the firebox a breeze.

Functional and stands out with it's superior environmental performance of .7/gph emissions.

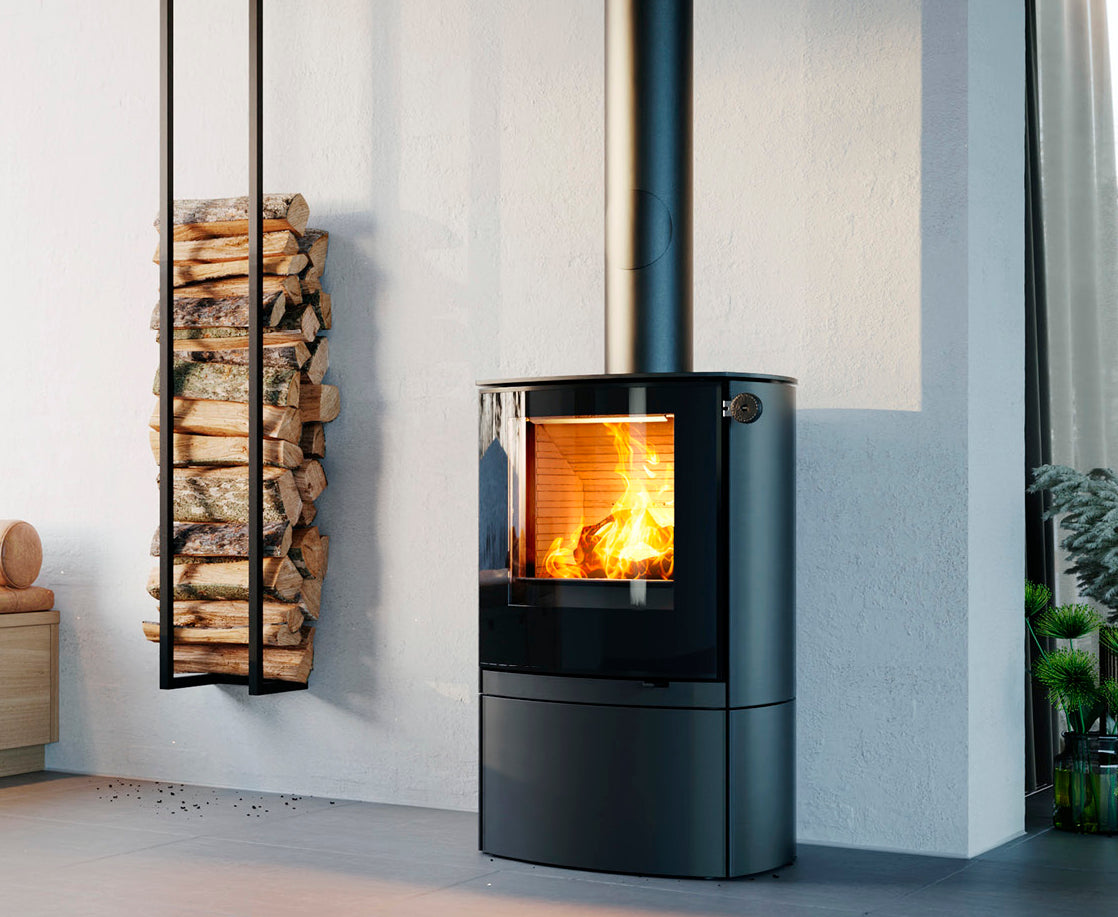

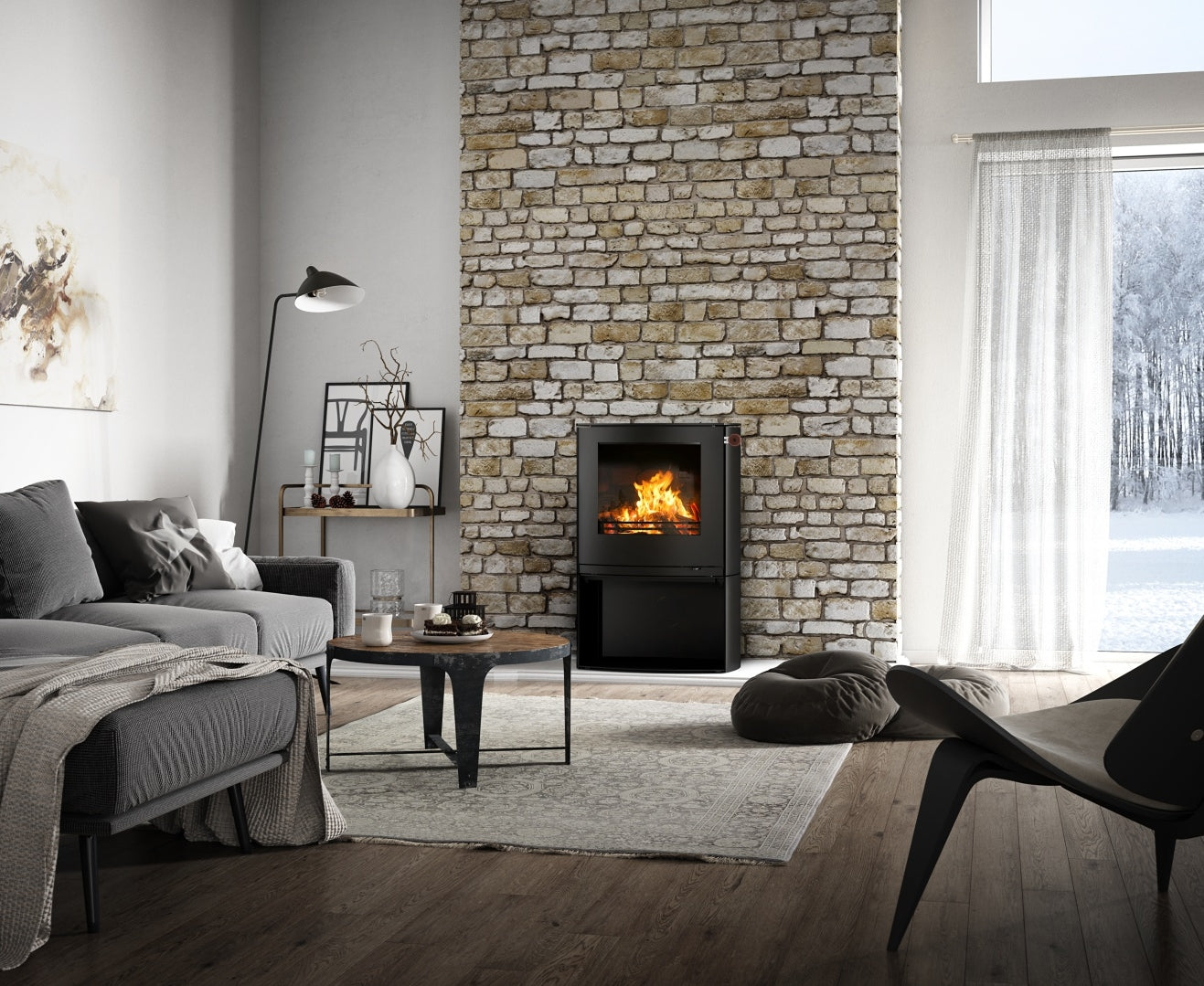

Rais Q-Tee II C is regarded as one of the cleanest burning non-catalytic stoves on the North American market.  The large fire box of this stove accepts a 17" piece of wood and can burn for many hours into the night.  The large window with stay-clean technology offers a magnificent view of the flames.  The door is available in a steel frame, or can be enhanced with an extra piece of glass on the outer surface as an option, so the whole door appears to be glass.  Base comes standard with full cover plate, or can also be taken out to be used as a full open wood storage area.  Outside-air adapter system is also an option.

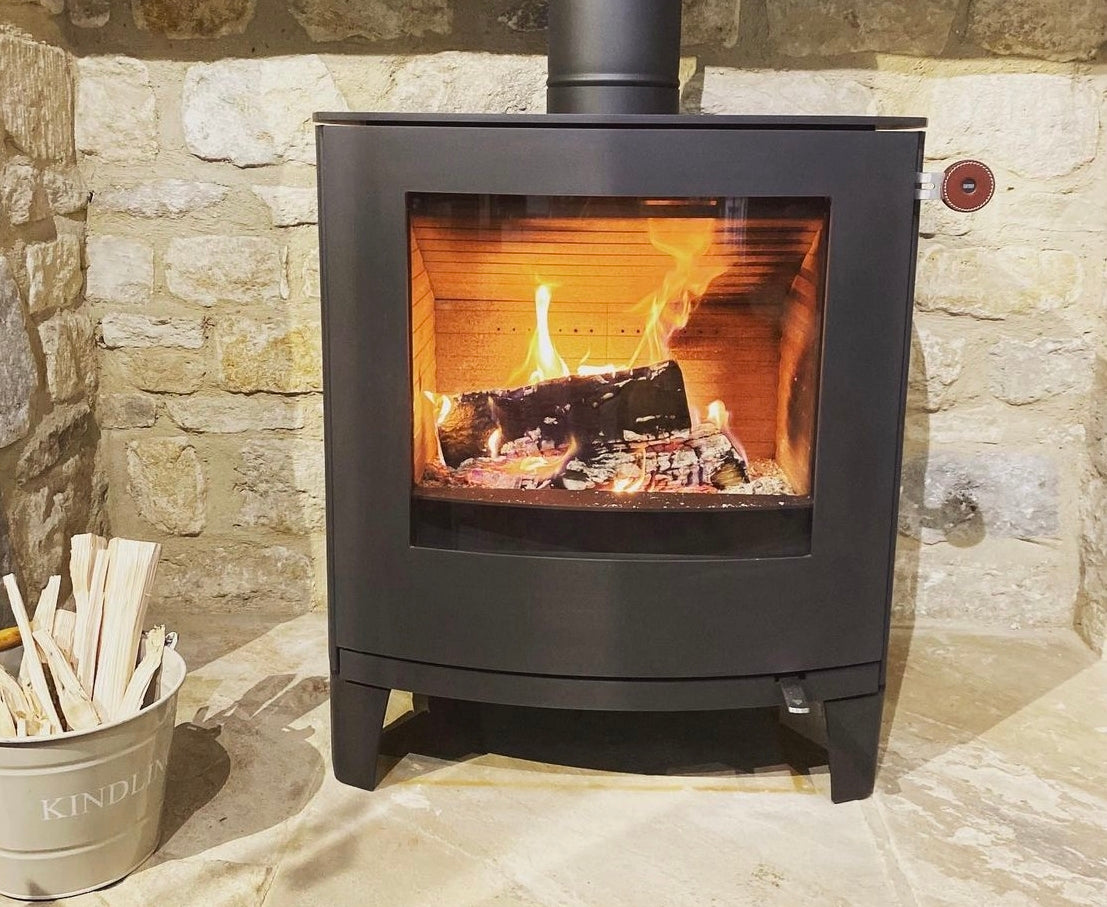

Short leg option: 6.5" / 4.9" legs available (Using legs or no base requires additional hearth protection with R value of 3.19)

Click here for CBI TEST REPORT

Click for Manual


Specifications:
Heat BTu output - 20 kBTu
Heat range (min-max) - 11-20 kBTU
Heating capacity (25-68 degrees F) - 1100 sq ft
Emissions - 0.7 g/hr
Efficiency -73%
Dimensions (W-D-H)
Stove Exterior 26- 19 - 42 1/3 "
Firebox Interior 17 1/2 - 9 3/5 - 10 1/5 "
Log Length 17 "
Pipe Diameter 6 "
Distance from center of top exit to the back edge of the top plate 5 1/8 "
Distance from floor to center of top exit 38 2/5th "
Distance from floor to center of rear exit 33 2/5 "
Floor to center of outside air connector 4 3/10 "
Distance to Flammable Material
Distance to combustible side wall 14 "
Distance to combustible back wall 12 "
Corner Clearance to Combustible 11 "
Weight Stove 381 LB
Features                              Standard            Option
Color: Black                              -                        -
Glass Door                               -                        X
Heat Shield                              X                        -
Outside AirSystem                   -                        X
Shaker Grate and Ash Pan       X                        -
Steel Door with Glass               X                        -
Top or Rear Smoke Exit             -                       X
Air-Cooled Handle                    -                        -
Downloads:
Owner's Manual
View full details
