Viva L 100 and 120 Gas Stove

Viva L 100 and 120 Gas Stove

Click Here: EMAIL FOR PRICING

Just submit your Name, Email, and Shipping address and we will get back to you with a custom price quote/shipping info.

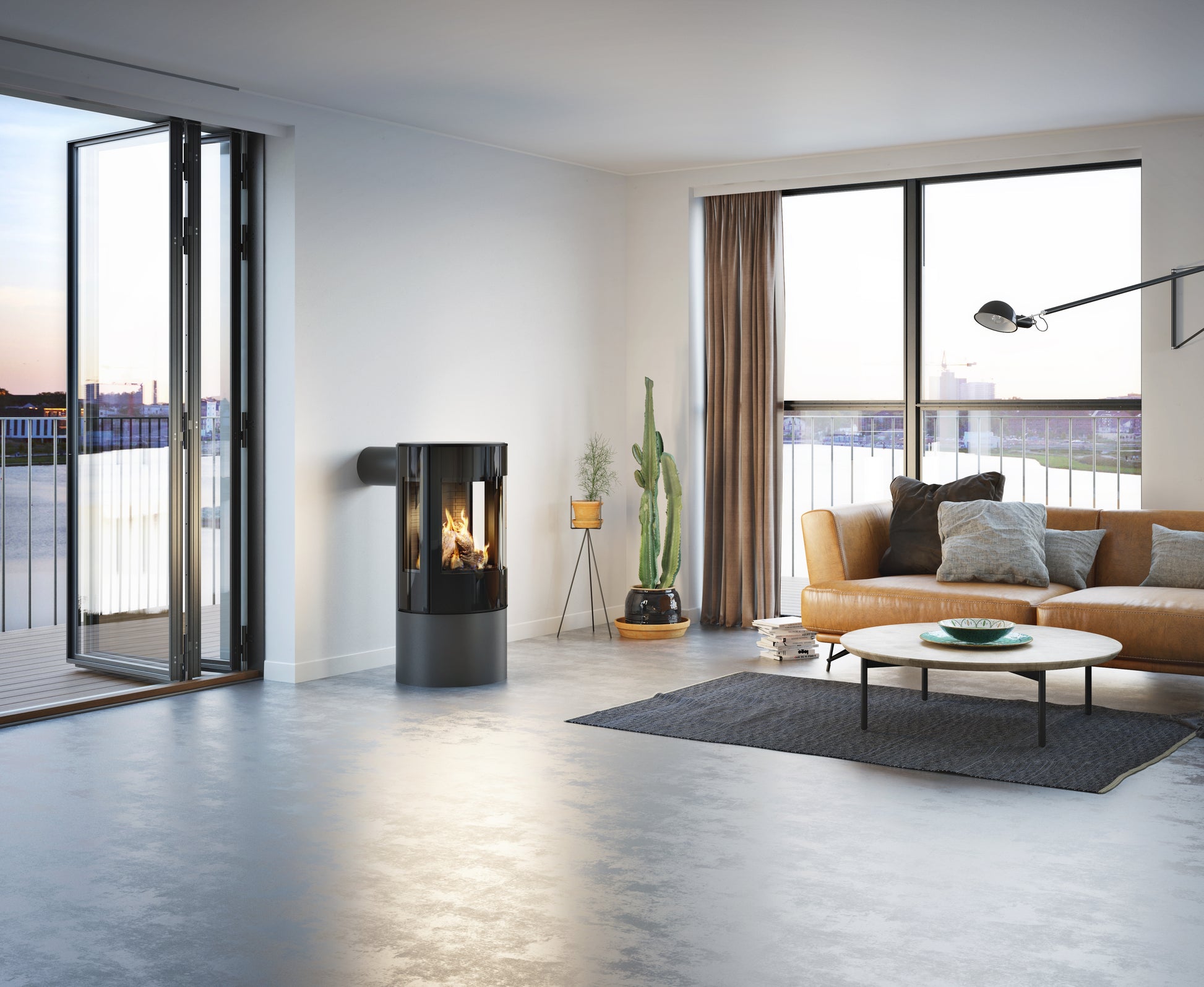

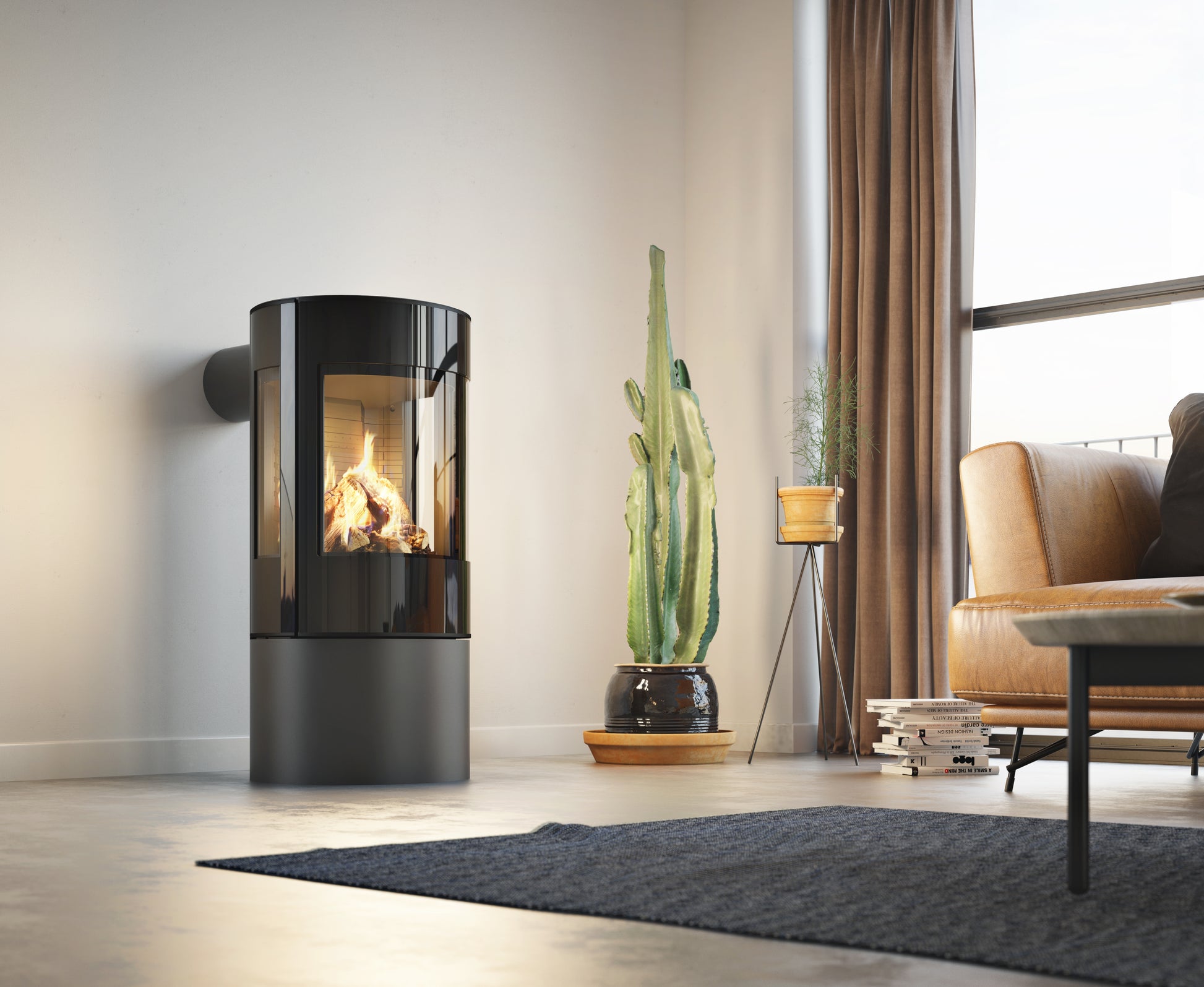

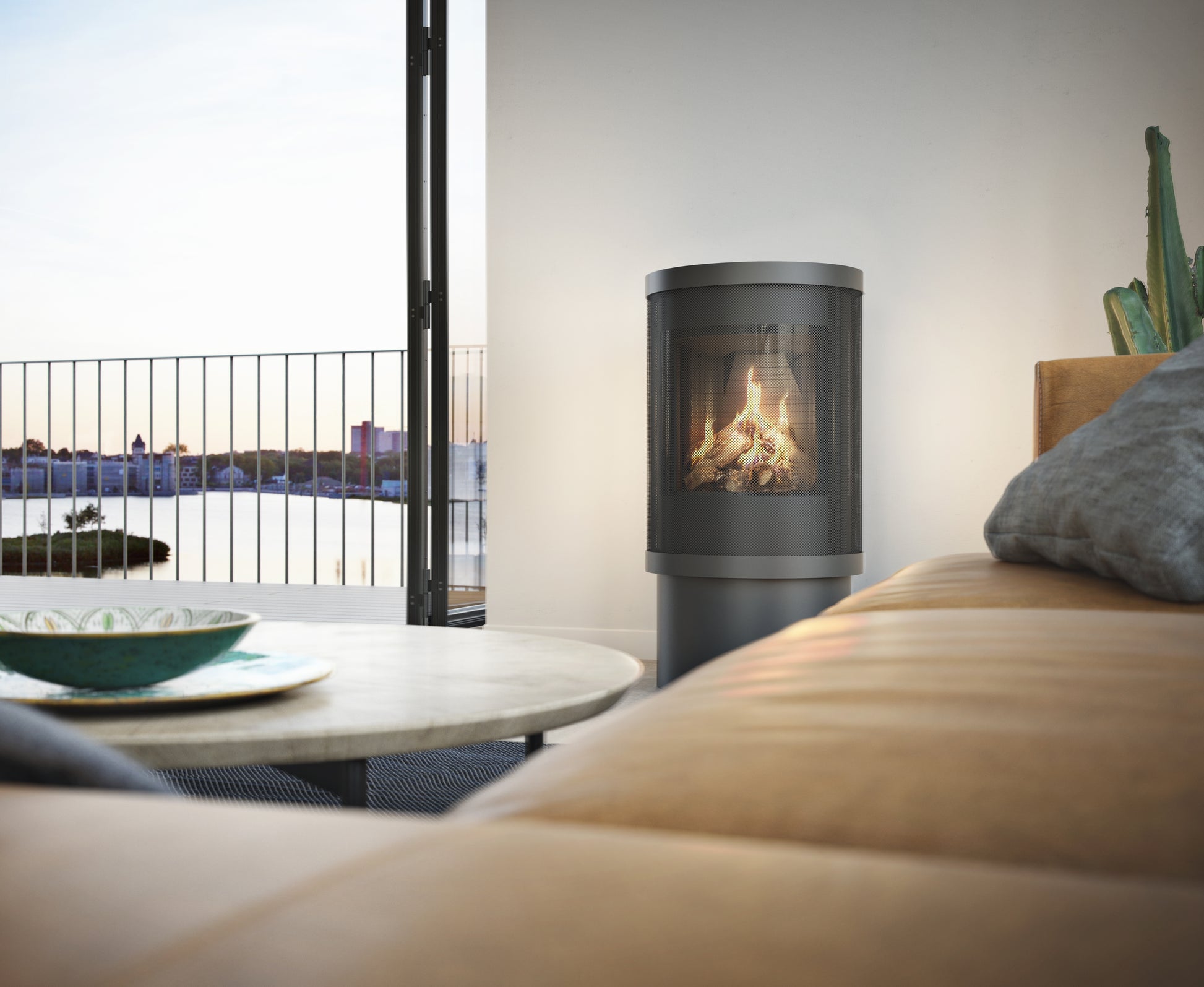

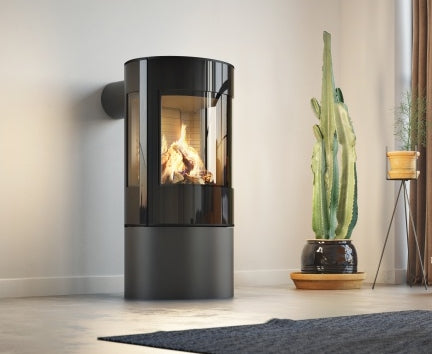

The RAIS Viva L 100 & 120 GAS stove series is iconically round, streamlined, and offers the beauty of Scandinavian simplicity. Unrivaled, beautiful flames with a wide viewing area. Optional side glass available to extend the view. Choose colors between black, and platinum  or nickel to match your decor. Truly convenient by turning on the heat with the flick of a button. Remote control start comes standard and is wall thermostat compatible. Light immediately, anytime! The flame height can be adjusted with just one click.  Standard for LP fuel with propane assembly kit included. Advanced auto-light pilot for easy lighting. Now comes standard with safety screen for your child's protection.



Color options: black, platinum, nickel

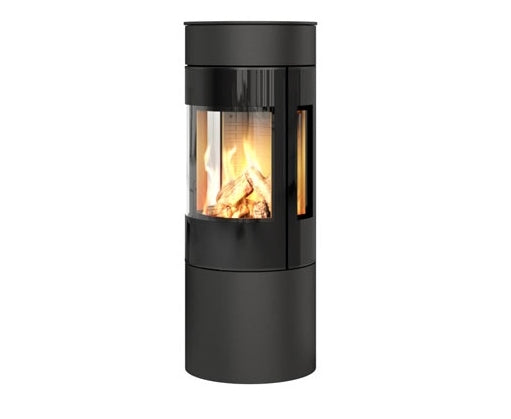

Viva L Gas 120 adds extra vertical height, and stands 48" off the ground.



Click for Manual


Specifications:

Heat
BTu output 31 kBTU
Heat range (min-max) 12-31 kBTU
Heating capacity (25-68 degrees F) 970 sq. ft
Emissions n/a
Efficiency 75+%
Dimensions (W-D-H)
Stove Exterior 19 1/8 - 18 1/2 - 39 5/8 "
Firebox Interior 14 3/4 - 9 5/8 - 17 1/2 "
Log Length - gas log set
Pipe Diameter 6 "
Distance from center of top exit to the back edge of the top plate 9.2 "
Distance from floor to center of top exit 37.7 "
Center pipe in top to back edge of stove 9.3 "
Distance from floor to center of rear exit (100) 32.75 - (120) 35 7/8th
Floor to center of outside air connector 4 3/4 "
Distance to Flammable Material
Distance to combustible side wall 6"
Distance to combustible back wall 2 "
Corner Clearance to Combustible 4 "
Weight
Stove 309 lb
Top Plate 25 lb
Features                              Standard            Option
Color: Black and Platinum          -                         X
Color: Black                                -                          -
Steel Side                                   -                          X
Steel Door with Glass                 -                          X
Top or Rear Smoke Exit              -                          X
Air-Cooled Handle                     -                          -

Downloads:
Owner's Manual


View full details
